Hybrid Solar Inverters 12kw Power Inversor Solax Hybrid System For Sale
1, Description:
• Rated power 9KW to 12KW
• Smart LCD setting(Working modes, Charge Current, Charge Voltage, etc.)
• Built-in MPPT 180A solar charge controller
• MPPT Efficiency max 98%
• Combining solar system, AC utility, and battery power source to supply continuous power
• Multiple operations: basic Grid-tie, Off-Grid, Grid-Interactive
• Support CAN, RS485 monitoring function with free CD
• WIFI/ GPRS remote monitoring (optional)
2, Parameters:
| MODEL | PH30-9048-T | PH30-12048-T |
| Nominal Battery System Voltage | 48VDC |
| INVERTER OUTPUT | Rated output power | 9000W | 12000W |
| | Output wave | Pure sine wave |
| | Nominal output voltage | 230 VAC (P-N) 400 VAC (P-P) |
| | Nominal output current | 13.0A per phase | 17.4A per phase |
| | Nominal output frequency | 50 Hz 60 Hz |
| | Rate of wave distortion(THD)(Linearity loads) | Off grid≤2%; Grid discharge ≤3%; Grid charge ≤3% |
| | Peak efficiency | ≥93% |
| | Overload capability | 100%<load≤110%,30 minutes; 110%<load≤125%,1 minutes; 125%<load≤150%,30 seconds; load<150%,10 seconds; Short circuit,5 seconds |
| AC INPUT | AC input maximum current | 26.0A per phase | 34.8A per phase |
| | Nominal frequency | 50Hz 60Hz |
| | Acceptable input voltage range | Defaults 186Vac ~253Vac per phase;Narrow 174Vac ~272Vac per phase; Wide 95Vac ~272Vac per phase |
| BATTERY | Nominal Voltage | 48VDC |
| | Low Voltage Protection Point | Charger 34.0VDC; Inverter 40.0VDC |
| | Absorption Voltage | 50.0VDC |
| | Refloat Voltage | 54.8VDC |
| | Float Voltage | 57.2VDC |
| SOLAR CHARGER & AC CHARGER | PV Open Circuit Voltage | 145VDC |
| | Max Solar Charging Current | 60A per channel |
| | Max AC Charging Current | 60A per phase | 80A per phase |
| | Max Charging Current | 120A per phase | 140A per phase |
| MECHANICAL SPECIFICATIONS | Mounting | Vertical |
| | Machine Dimension, W*H*D(mm) | 392*828*629 |
| | Package Dimensions (W*H*D)(mm) | 513*1031*700 |
| | Net Weight (kg) | 133 | 140 |
| | Gross Weight (kg) | 128 | 160 |
| OTHER | Communication terminal | RS485/CAN bus |
| | Operation Temperature Range | 0℃ ~+50℃ |
| | Environmental Protection Rating | IP20 |
| | Ambient humidity | 0 -- 90% relative humidity(non-condensing) |
| | Altitude | ≤2000m |

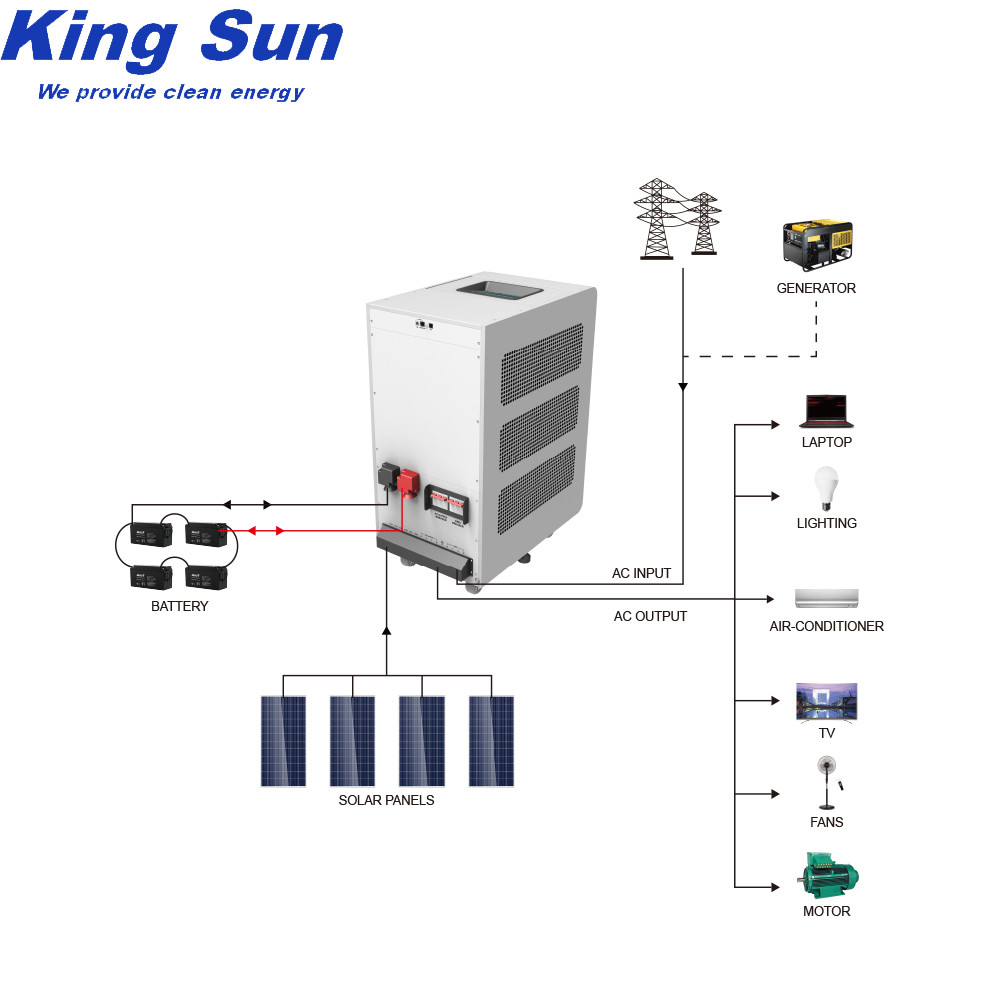

3, Usage with Solar Inverter:
This model Three-phase is a flexible and intelligent energy storage inverter which utilizes solar power, utility power, and battery power source to supply continuous power. This is a multi-functional hybrid inverter which can power all kinds of appliances in home or office environment, including motor-type appliances such as tube light, fan, refrigerator and air conditioner. The system generates electricity when it has sufficient sunshine, supplying power to your home and feeding any surplus power back to the Grid.
4, FAQ
Q one.Do you have MOQ?
Depands on different ideas, Can be negotiated.The larger the quantity is, the competitive the unit price will be.
Q two.Should the customer pay the delivery fee,How much is it?
For the delivery fee,many samples are be requested to be sent,so we must get delivery fee.
If you tell me to use the appointed Express,you will give me your express account or you will pay according to the Express.
If you do not request,I will choose a cheap one in China.
Q three .How about the after sale service?
1)We will always keep the quality the same with the same and if there is something with the quality,we will make compensaton for our coustomers.
2)We will suggest our packing and take charge in our packing,we will keep the goods safe in the delivery.
3)We will trace the goods from the production to selling,we will slove the problems in the selling for our coustomers.
Q four.When can I get a price?
We usually quote within 24hours after we get your inquiry.

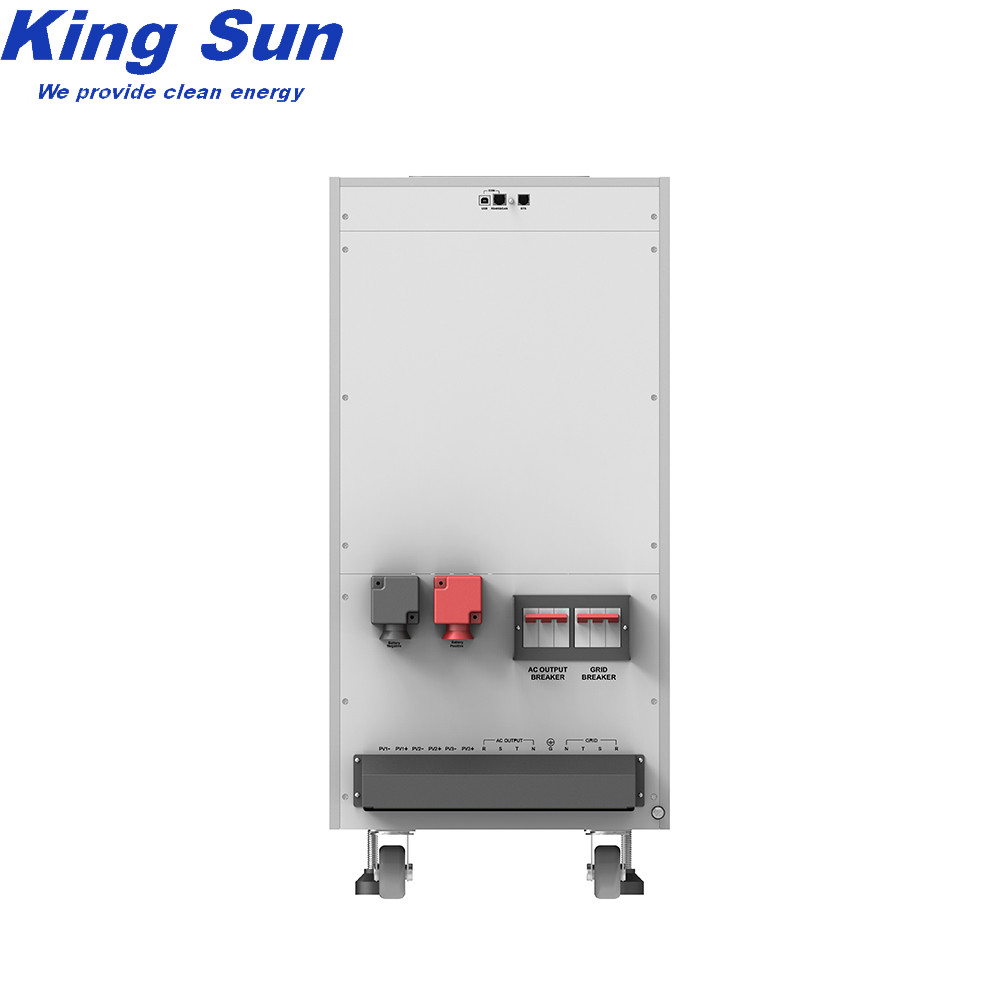

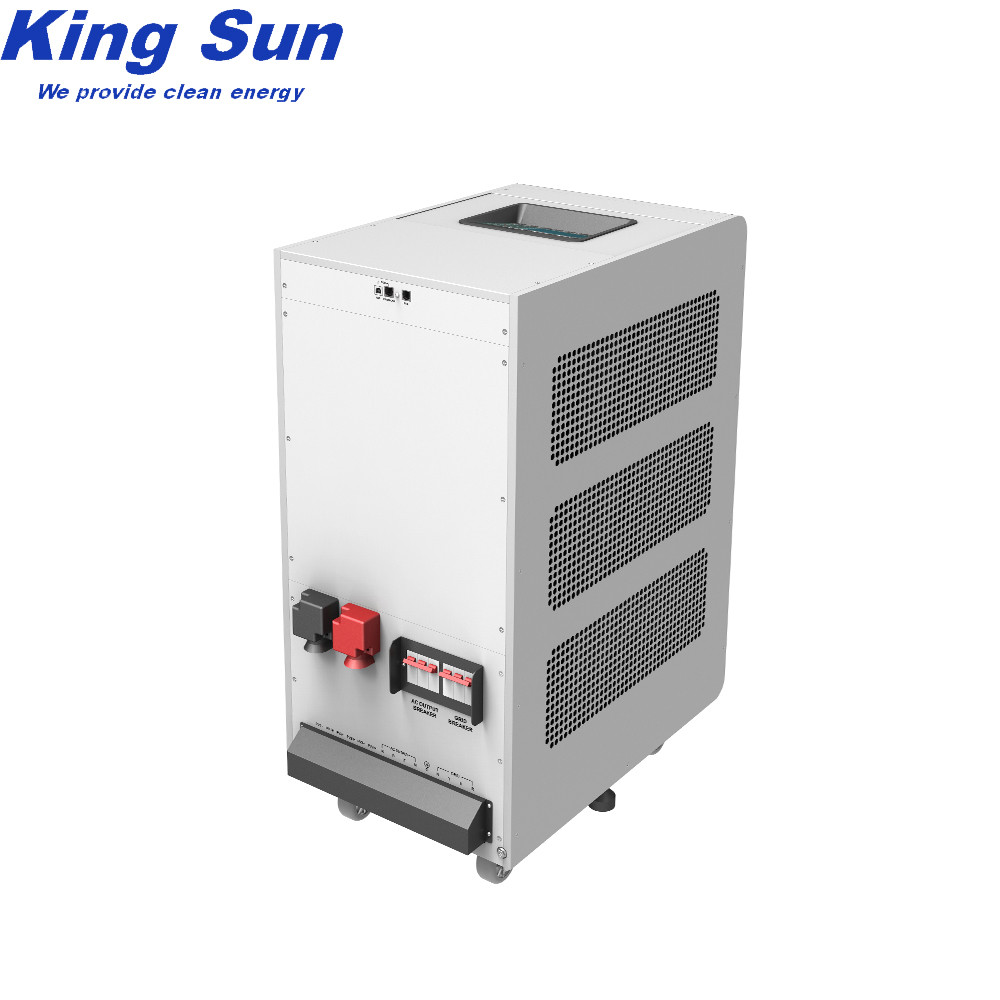

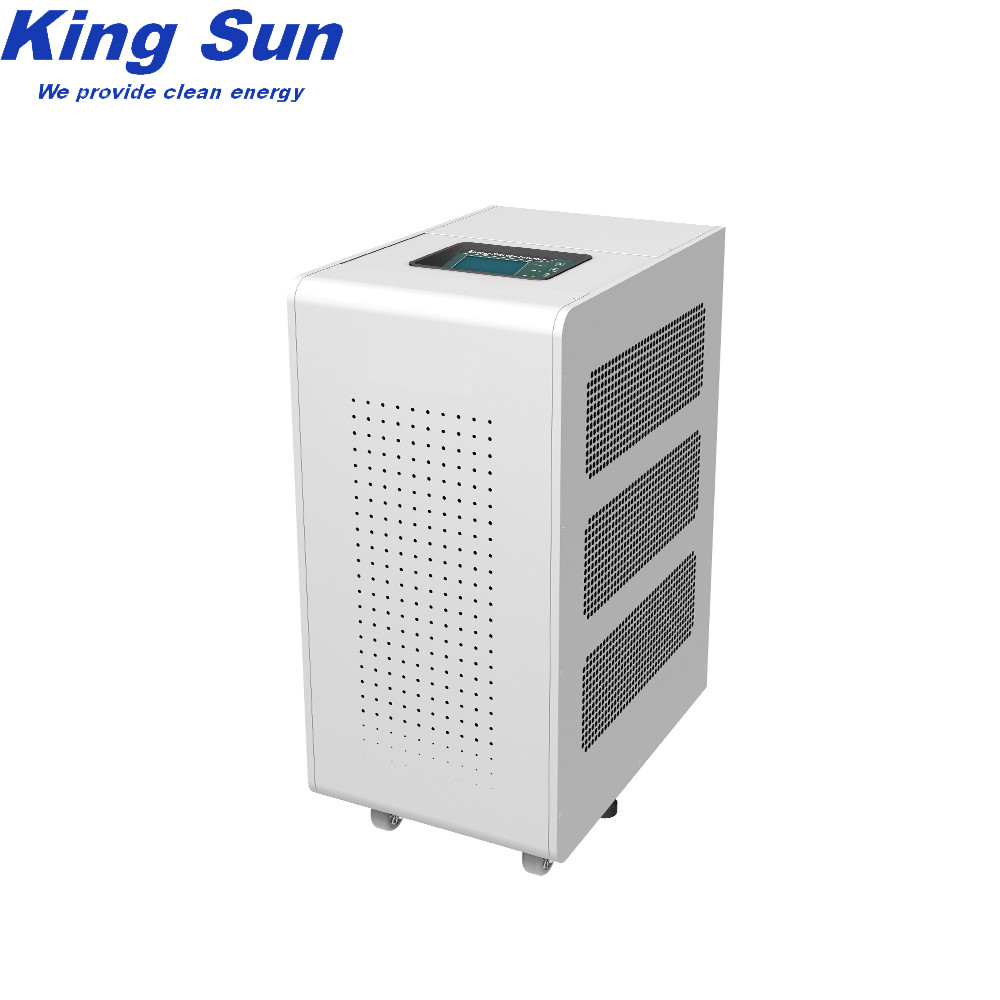

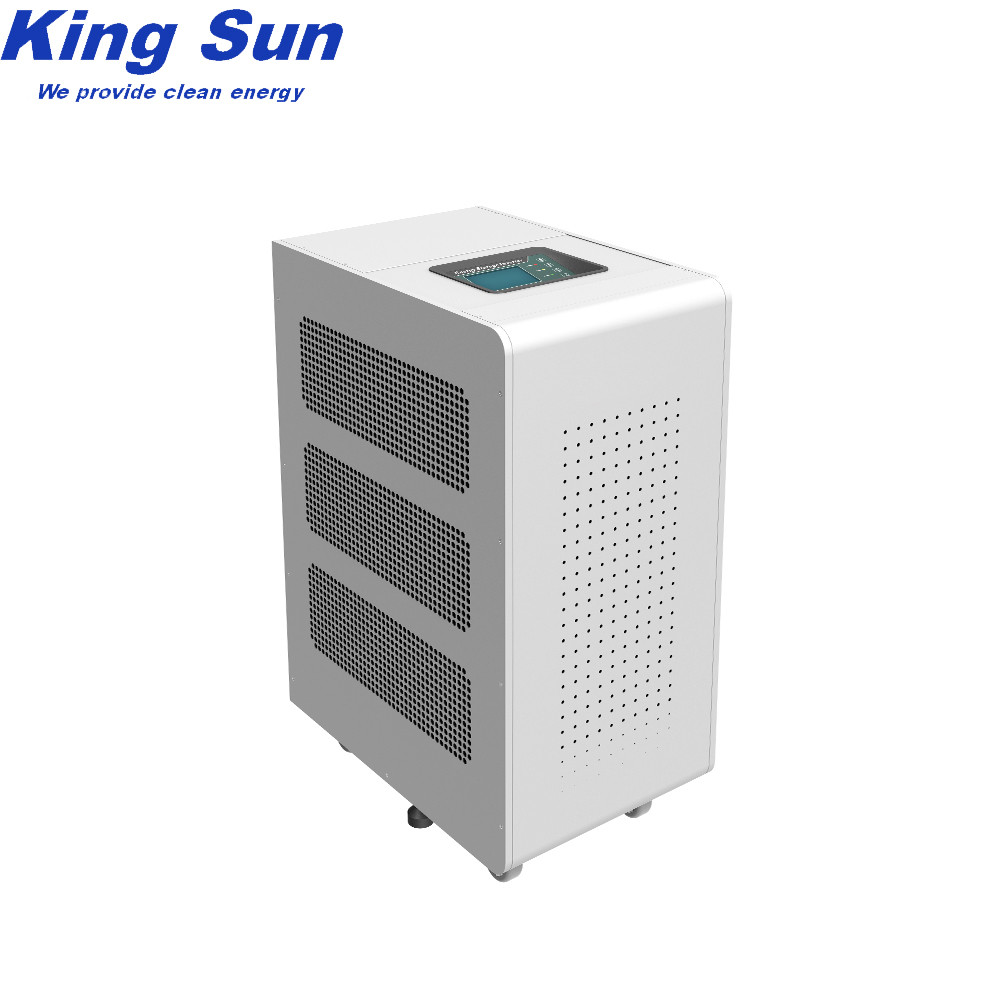

5, More picture:
Delivery
Hybrid solar systems combines the best from grid-tied and off-grid solar systems. These systems can either be described as off-grid solar with utility backup power, or grid-tied solar with extra battery storage.
